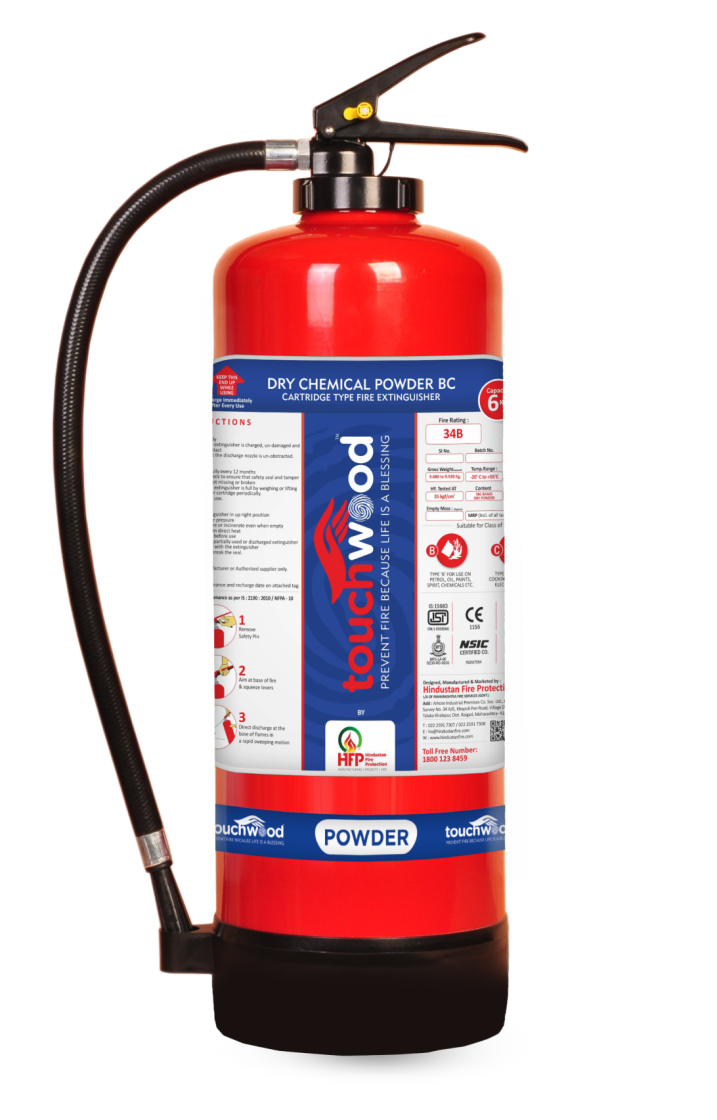

Dry Chemical Powder Cartridge Type Fire Extinguisher (BC)
TOUCHWOOD Cartridge operated Dry Powder fire extinguishers are characterized by their high performance, simple method of operation and rapid fire knock down capability. They are suitable for tackling fires involving freely burning materials, petrol & oils, gas & electrical equipment. They are ideal for Home, Office, Buildings, Warehouses, Factories, Wood Working Area, Refineries, etc. TOUCHWOOD powder extinguishers contain high
FEATURES
- Sodium-Bi-Carbonate based Dry Chemical powder confirms to IS 4308 & capable of fighting class B, C & Electrical fires.
- BIS Approved (IS 15683).
- CE Certified.
- High quality pure polyester powder coating.
- Controlled discharge.
- Brass nickel plated head valve with simple squeeze operation.
- Easy & more economical to maintain & service.
- Rechargeable and easy to service.
- High quality EPDM Rubber braided hose is far more flexible than the normal rubber used in hose pipe and also far less prone to cracks (on Demand).
- Large loop Stainless steel pull Pin
Ideal Use
- Home | Office | Building | Warehouse Factories
- Wood Working Area | Refineries | etc
Performance Data - Powder Extinguishers Bc Cartridge Type
| MODEL (SBC) | G-01 | G-02 | G-03 |
| Capacity | 4 kg | 6 kg | 9 kg |
| Design | Hose & Nozzle | Hose & Nozzle | Hose & Nozzle |
| Fire Rating (SBC) | 21B | 34B | 89B |
| Height (Approx) | 510 mm | 540 mm | 585 mm |
| Diameter (Approx) | 140±10 mm | 150±10 mm | 180±10 mm |
| Average Discharge time | 15 Sec. | 20 Sec. | 30 Sec. |
| Average Range of throw | 4 m | 4.5 m | 5 m |
| Average % Discharge | 94% | 94% | 93% |
| Operating Temperature | -20°C to +55 °C | -20°C to +55 °C | -20°C to +55 °C |
| Service Pressure (Ps) | 14 bar | 14 bar | 14 bar |
| Max. Service Pressure (Pms) | 16 bar | 16 bar | 16 bar |
| Test Pressure | 35 bar | 35 bar. | 35 bar |
| Expelling Agent | CO2 Gas | CO2 Gas | CO2 Gas |
| CO2 Gas Cartridge | 120 gm. | 120 gm. | 200 gm. |
| Full Weight (Approx.) | 7.3 kg. | 10.3 kg | 15.3 kg |
| Empty Weight (Approx.) | 3.3 kg. | 4.3 kg. | 6.3 kg. |
| Shipping Weight (Approx.) | 7.5 kg | 10.5 kg. | 15.7 kg |
| Packing Standard | 2 in 1- 21"X6.75"X14.10” | 2 in 1- 22.5"X6.75"X14.10” | 2 in 1- 24.75"X15.3"X8” |
| Mounting Bracket | Wall Bracket | Wall Bracket | Wall Bracket |
| Approval | BIS & CE | BIS & CE | BIS & CE |
Contact Now
| Model | A | B |
|---|---|---|
| G-01 | NA | 21B |
| G-02 | NA | 34B |
| G-03 | NA | 89B |
