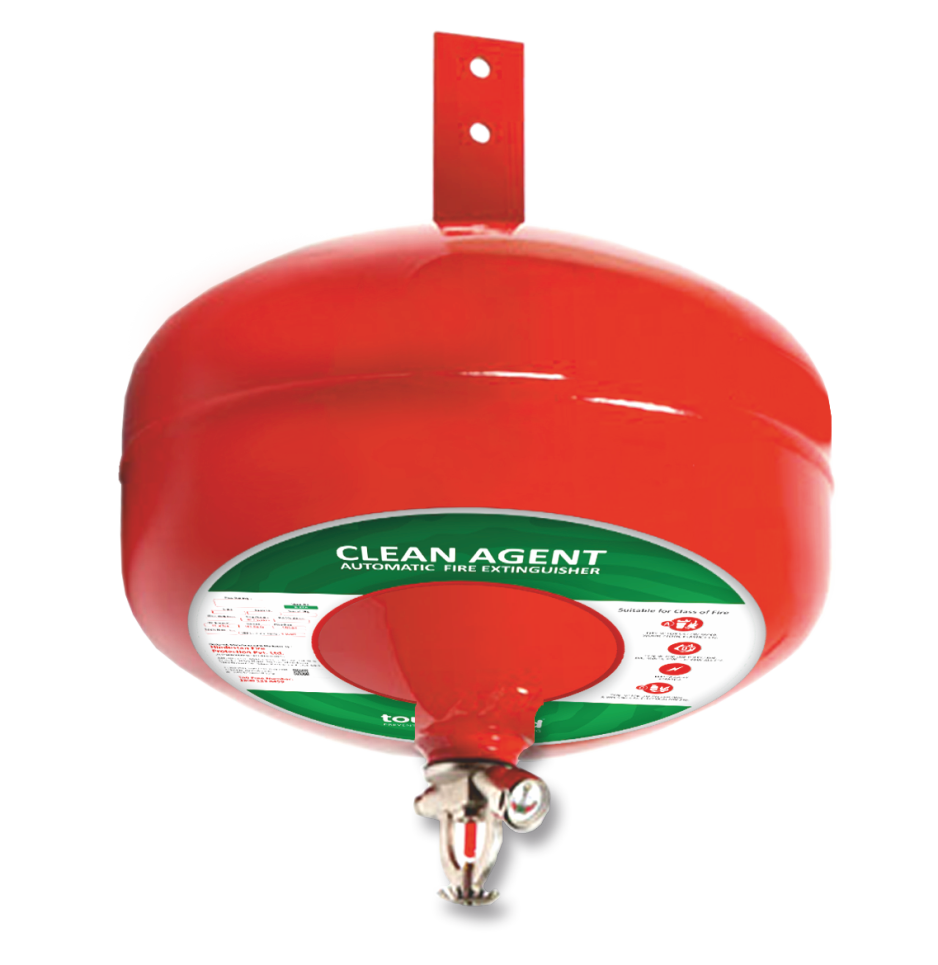

Clean Agent modular Automatic type fire extinguisher
TOUCHWOOD presents modular type HFC 236 fa clean agent gas along with range of gaseous automatic fire extinguisher which keep guard and extinguishes fire quickly and efficiently especially in close places where fire could cause extensive damage if not detected and extinguished in time.
FEATURES
- Provides concentrated fire protection for vital equipment
- Highly cost effective compared to automatic fixed fire protection systems
- It is a portable unit, easy to install and re-locate
- Imported pressure gauge fitted for instant verification of functionality and reliability of every unit
- Automatic and reliable security round the clock
- Provides security in case of emergencies and power failure without power backup
- Rechargeable and easy to service
Ideal Use
- Home | Office | Building | Warehouse Factories
- Factories Electrical Equipment Rooms | Welding Areas | etc
Performance Data - Clean Agent modular Automatic type fire extinguisher
| SIZES | MODEL | PROPELLENT | WORKING PRESSURE |
TESTING PRESSURE |
AREA PROTECTION |
VOLUME PROTECTION |
HANGING VERTICALLY ABOVE RISK |
OPERATION TIME IN SECONDS |
CLEAN AGENT |
| 2kgs | G-25 | Nitrogen | 7 to 15 kgs/cm |
35 kgs/cm |
1 to 1.5m2 | 2.5m3 | 1.5m | 6-8 | CLEAN GAS |
| 5kgs | G-26 | Nitrogen | 7 to 15 kgs/cm |
35 kgs/cm |
2 to 2.5m2 | 6m3 | 1.5 to 2m | 8-10 | CLEAN GAS |
| 10kgs | G-27 | Nitrogen | 7 to 15 kgs/cm |
35 kgs/cm |
4 to 5m2 | 10m3 | 1.75 to 2.25m | 10-15 | CLEAN GAS |
| 15kgs | G-28 | Nitrogen | 7 to 15 kgs/cm |
35 kgs/cm |
5 to 6m2 | 15m3 | 2 to 3m | 15-20 | CLEAN GAS |
Contact Now
| Properties of HFC 236fa Clean Agent Chemical Formula : 1,1,1,3,3,3 Hexa Fluoro Propane | |
| Molecular Weight | 152 |
| Boiling point | -1.4 °C |
| Freezing Point | -103 °C |
| Maximum Fill Density | 1.20 gm/ml. |
| Specific gravity | 1.34 gm/ml. |
| Scheduled Production Phase out per Montrol | None |
| Protocol |
|
|
|
|
|
| Comparisons between Clean Agents | |||||||
| Extinguishing Agent | HALON 1211 | HALOTRON I | TOUCHWOOD HFC 236 fa | ||||
| Chemical Family | BCFC | HCFC | HFC 236 fa | ||||
| Acute Toxicity: Cardiotox LOAEL (Lowest Observable Adverse |
|
|
|
||||
| Effects Level) A higher % is less toxic. | 1% | 2% | 15% | ||||
| Acute Toxicity: Cardiotox NOAEL (No Observable Adverse |
|
|
|
||||
| Effects Level) A higher % is less toxic. | 0.50% | 1% | 10% | ||||
|
|||||||
| Extinguishing Concentration, Cup Burner, n-heptane | 4-5% | 6-7% | 5.90% | ||||
| Ozone Depletion Potential–ODP (CFC-11 = 1.0) | 4 | 0.014 | 0 | ||||
| Global Warming Potential –GWP | N/A | Low | Moderate | ||||
| Atmospheric Lifetime | Low | Low | Moderate | ||||
Comparative Advantages of HFC 236 fa
Extinguishing agents
- It does not contain d-limoene,which is flammable non volatile residue. Extinguishing agents containing d-limoene may leave a coating of d-limoene. In HFC 236 fa variation between atmospheric temperature and boiling point is less, hence it does not leaves any condensed moisture as in case of CO2.
HFC 236 fa
- HFC 236 fa is not scheduled for phase out as HCFC like Halotron I, which contains Chlorine. The B.P of HFC 236 fa is 1.40C, hence is discharged as gas, unlike Halotron I, which comes out as a liquid. The Extinguishing concentration of HFC 236 fa is well above NOAEL and LOAEL values. NO CL2 BR2 . NO PHASEOUT : MONTREAL PROTOCOL
